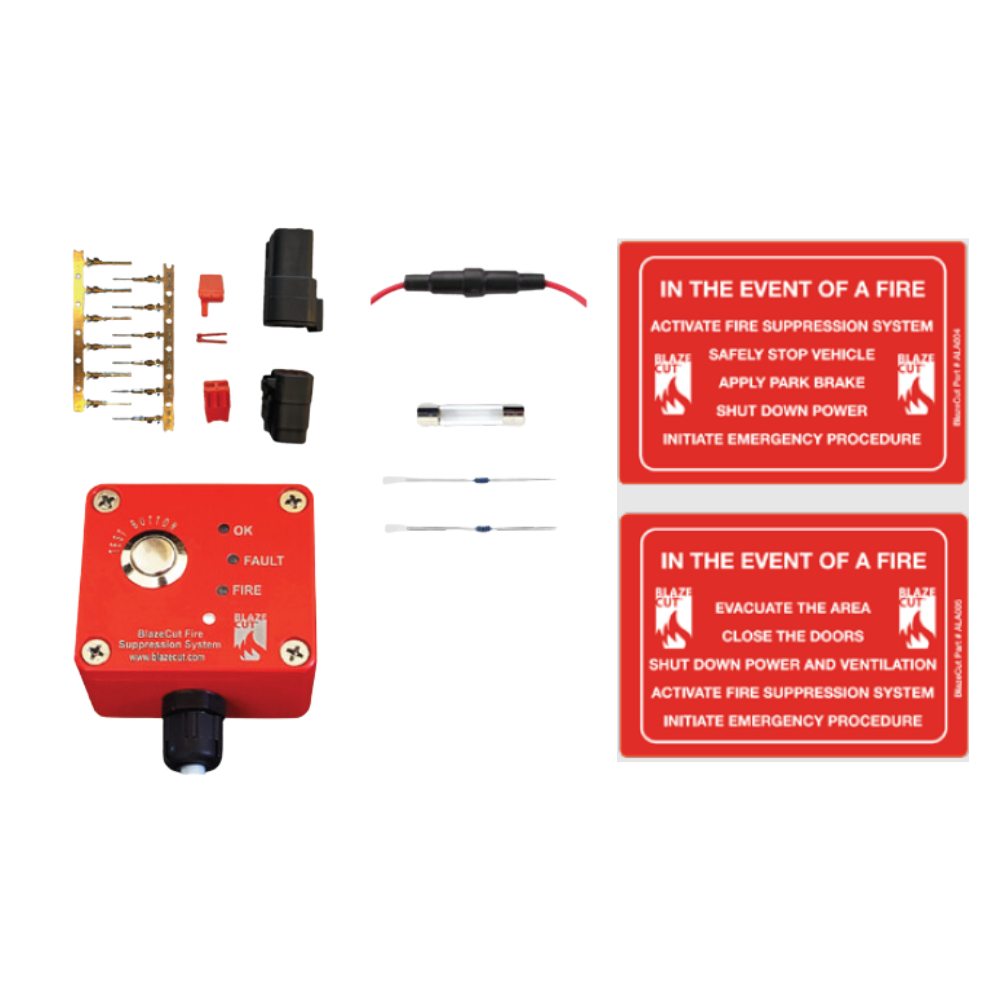

Blazecut Alarm Panel AAP400 kit with a test button for T and C Series KAAP400

Blazecut Alarm Panel AAP400 kit with a test button for T and C Series KAAP400

ID: 9461609824555 MPN: AAP400
Regular price $469.99 AUD
Regular price $479.00 AUD Sale price $469.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Express Backorder Available

Shipping Timeframe

Ships within 24-48 business hours if "Low stock" and "In stock" (see above).
Ships in 3-5 days if "Express Backorder Available" status.
See product description for custom products.

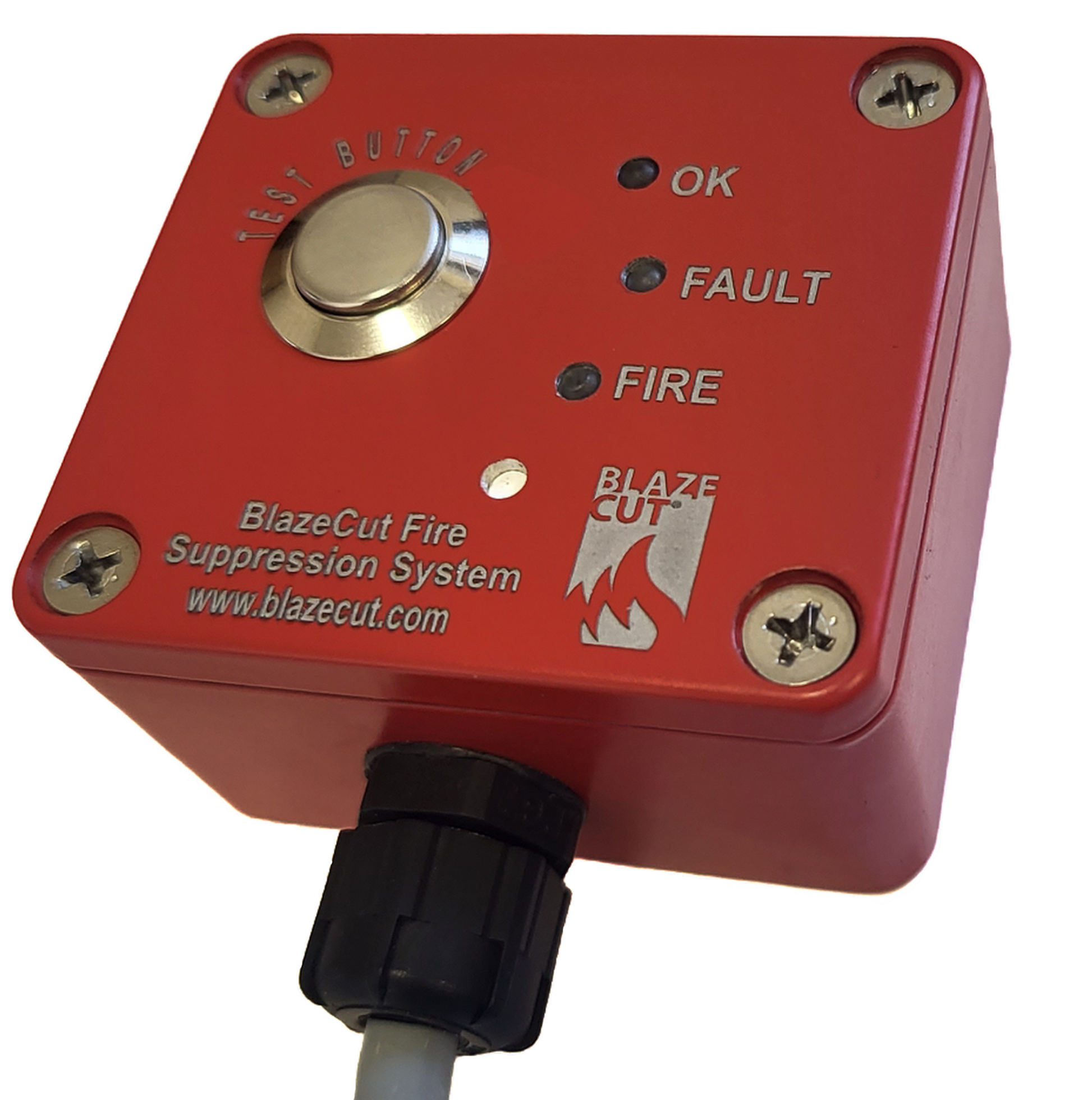

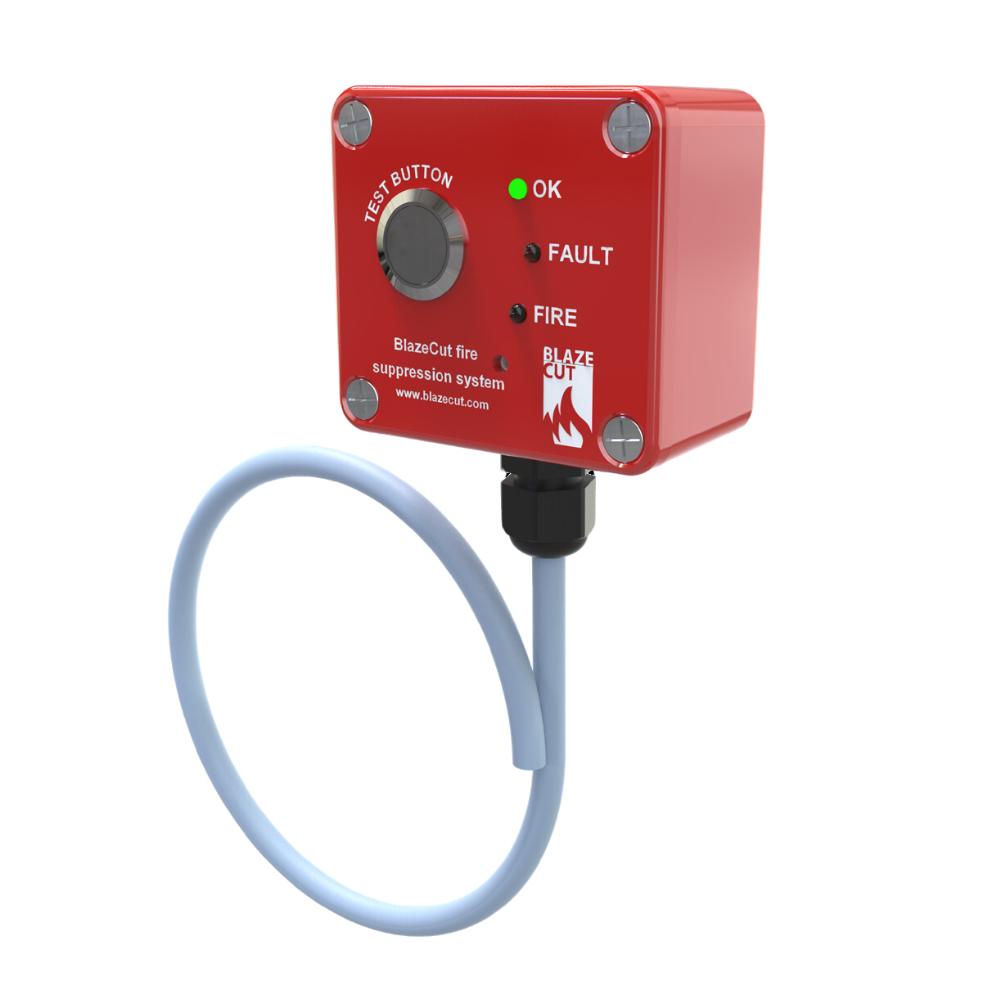

The BlazeCut Alarm Panel AAP400 is a simple and effective optional device for monitoring system status and component functionality. It can be used with the full range of BlazeCut fire suppression systems, where only automatic system activation is required.



  • Durable powder coated aluminium body
  • Fault and disconnection identification
  • Compatible with C Series and T Series
  • Can be used as an independent fire warning device (not requiring extinguishing system)
  • Small footprint design
  • Universal flush or surface mounting
  • Test /reset button
  • Audible and visual fire signalling
  • IP65 rated and EMC tested (EHK 10-06)

Parameter

Description

Material of body

Red powder coated aluminium

Dimensions (LxWxH)

64x58x30 mm (excluding cable gland)

Operation temperature

from -30 °C to +70 °C

Ingress protection

IP65 rated (boxed version)

Operation voltage

from 10 V DC to 30 V DC

External cable

0.5 m cable, core 6x Ø 0.5 mm

Sound power

85 dB @ 10 cm distance

External fuse

200 mA

Maximum current draw at 12 V DC

140 mA (at 12 V DC), 70 mA (at 24 V DC)

Luminous intensity of LED lights

300 mcd

Monitoring frequency

10 Hz
